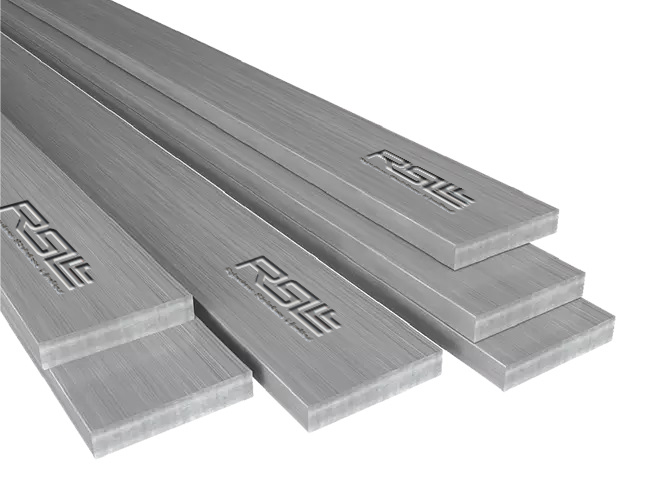

Cold-Drawn Flat Bars

As a prominent manufacturer of cold-drawn stainless steel flat bars in India, we employ the highly effective cold drawing process. This method involves feeding the pointed end of the bar or coil into a gripping device on the drawing machine. The machine then pulls the remaining unreduced section of the bar through a die, which reduces the cross-sectional area of the original bar, increases the length of the product, and shapes its profile. The outcome of this cold drawing process is a product at room temperature, known as "cold drawn," featuring a bright and polished finish, as well as improved machining characteristics. This drawing operation not only enhances the mechanical properties but also ensures precise and uniform dimensional tolerances.

Supply Conditions:

●      Size Range:
      ○      Width: 20 mm - 100 mm       ○      Thickness: 8 mm - 40 mm       ○      Tolerances: Conforming to ASTM A 484 and EN 10278 standards

●      Length: 2 to 6 meters
       ○     Length Tolerances: Offered in customized cut-to-length bars with tolerance range of -0/+10 mm ●      Surface Treatment:
       ○     Finished with a Cold Drawn and Pickled Condition   ●      Heat Treatment:
       ○     Subjected to Solution Annealing ●      Grades:
       ○     AISI: 304L, 316L, 316Ti, 321        ○     DIN: 1.4307, 1.4404, 1.4541, 1.4571

Our commitment to precision and excellence is reflected in the meticulous application of the cold drawing process, resulting in stainless steel flat bars that not only meet but exceed industry standards. With a range of sizes, superior surface finishes, and adherence to specific customer requirements, our cold-drawn flat bars are positioned to excel in various applications.
